 >  Wedge Gate Valve

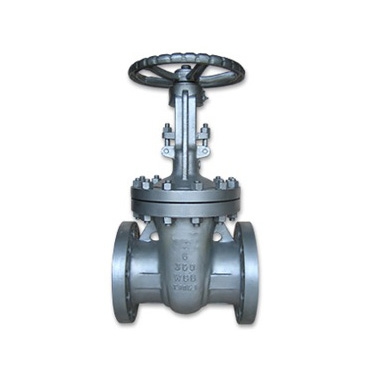

GATE VALVE

DESIGN STANDARD: API 600/BS-1414
FACE TO FACE DIMENSIONS: ANSI B 16.10/BS-2080
MATERIAL OF CONSTRUCTION :
(a) From barstock in carbon steel or stainless steel (304, 316,304L. 316L. 321) Hastalloy
B & C & Alloy 20.
(b) Castings in carbon steel to ASTM A216Gr. WCB, WCC, LCB, LCC.
(c) Casting in stainless steel to ASTM A 351 Gr. CF8/CF 8M/CF 8C/CF3/CF 3M Alloy 20,
Hastalloy B & C.
(d) Castings in C.I. to I.S. 210 G.R.20.
(e) Castings in Alloy Steel to ASTM A 217 C5, WC6, WC9, WC12.
SIZE RANGE : 15mm to 600 mm.
PRESSURE RATING : 150/300/600/900/1500/2500 class.
ENDS :
Screwed to BSP/BSPT/NPT forsizes 15 mm to 50 mm.
Flanged to ANSI, DIN or BS, API-6D standard.
Socket weld to ANSI B16.11. for sizes 15 mm to 50 mm.
Butt weld to ANSI B 16.25 for sizes 15 mm to 600 mm.
