 >  Cage-guided Control Valve

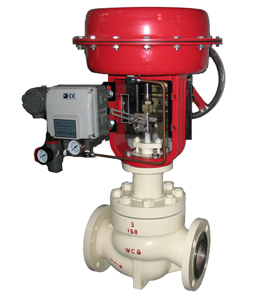

Cage-guided control valve is a pressure balancing control valve featuring high Cv¡¢wide adjusting range and high precise flow feature. This product is usually equipped with pneumatic diaphragm actuator, ideal for flow controlling services need good dynamic stability¡¢low noise and low leakage rate.

Design Feature

Product Range
Strong flow capacity
Fluid mechanics design idea
Various trim structure
Large guiding area for stable movement
Wide adjustable range and high adjusting precise
Floating seat with well sealing capability
Modularized integral structure design for easy inter-changeable
Apply to control various fluid mediums

Size
£º
1-1/2¡«16¡±(DN40~DN400)
Pressure Rating
£º
150¡«2500LB(PN16~PN420)
Body Materials
£º
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Operation
£º
PDL pneumatic diaphragm actuator¡¢PCL pneumatic piston actuator¡¢Electric actuator
