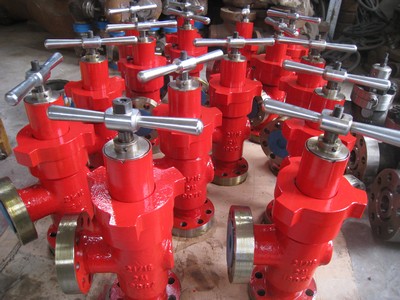

ADJUSTABLE CHOKE VALVE
1. Rated Working Pressure: 2000~15000psi
2. Nominal Bore: 2-1/16'' ~ 4-1/16''
3. Driving Mode: Manual, Hydraulic
4. End Connection: Flange, Thread, etc.

Adjustable choke valve is classified into needle-type adjustable, barrel-type adjustable and orifice feature in design;
Valve needle and valve core are made of hard alloy steel with some properties of erosion resistance and corrosion resistance;
Take the effect of adjustment of flow-rate and pressure and opening/closing the choke valve;
Needle structure is used for X¡¯mas tree assembly,and barrel for choke manifold.
