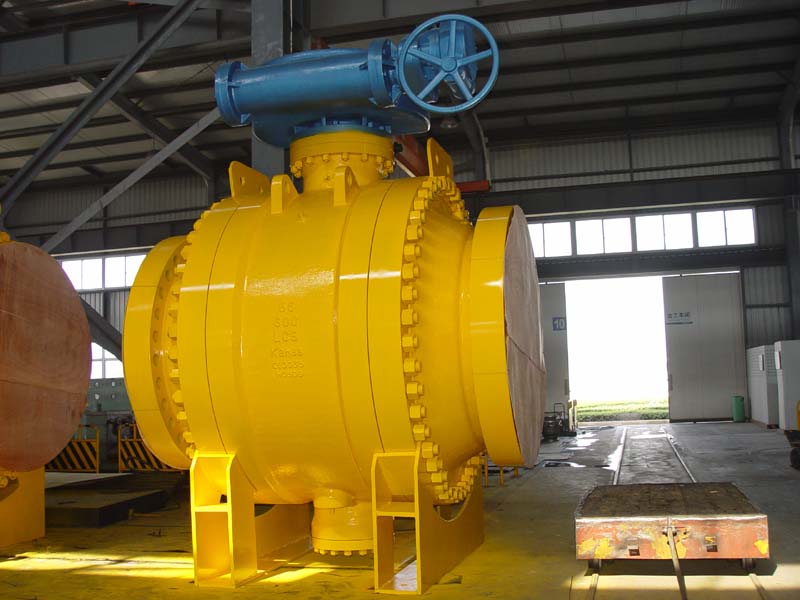

 >  Trunnion Mounted Ball Valve


Ball of trunnion ball valve is fixed, it does not move with medium pressure. Trunnion ball valve has floating seats.  The seats move with the medium pressure to tight the ball and seal ring to ensure sealing reliability. Bearings could be mounted in top shaft and bottom shaft, which reduces operation torque. This is widely used in valves with high pressure and big sizes. To decrease the operation torque and increase sealing reliability, lubricated ball valves are adopted in recent years. A special sealant is injected between sealing faces of lubricated ball valve to create a layer. This increase the sealing reliability while decreasing the operation torque, which is better for high pressure, big sized ball valves.

Sealant Injection Device

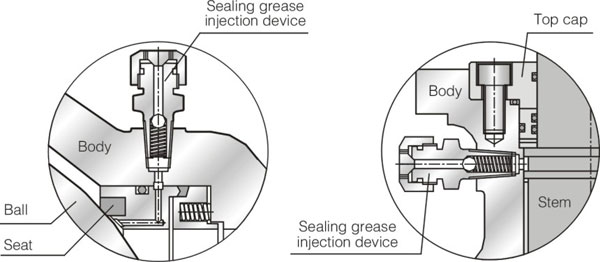

Trunnion mounted ball valves are provided with devices for Sealant injection, which are on both the stem and seat for the trunnion ball valves of DN>150mm (NPS6), and in the body cavity for the valve of DN<125mm. When the O ring of stem or the body seat ring is damaged due to accident, the medium leakage between body and stem can be prevented by injecting the Sealant through the device.

Double Block and Bleed

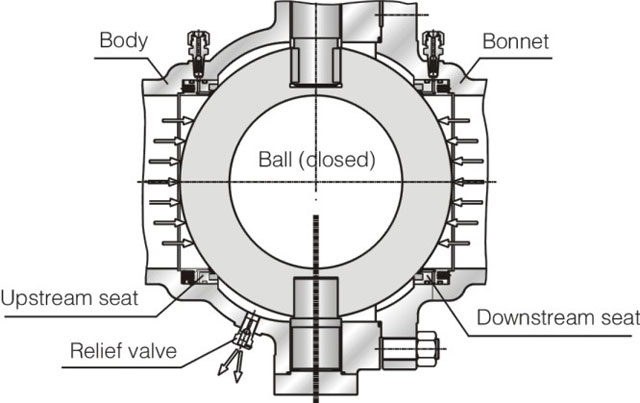

Trunnion ball valve features the front ball sealing design structure. Each seat of the ball valve can separately cut off the medium at both upstream and downstream to achieve double block function. When the ball valve is closed, body cavity is segregated from both upstream and downstream even there is pressure at both ends. The medium left in the body cavity could increase the pressure to propel the seats. The medium could be bled out through the relief valve to ensure valve safety.

Anti-static Design

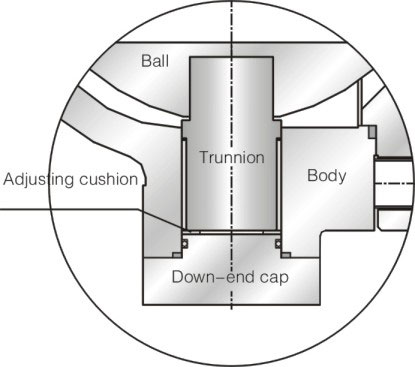

Except for the anti-static features floating ball valve has, the trunnion ball valve has more. The ball of the trunnion ball valve gets close contact with each other through the trunnion, adjusting cushion, and down-end cap, the passage of static electricity thus forms together with the valve, which may lead the static electricity caused by sparks generated by friction between the ball and seat during on and off performance to the ground to prevent the possible  risk of fire or explosion.



Fire Safe Design

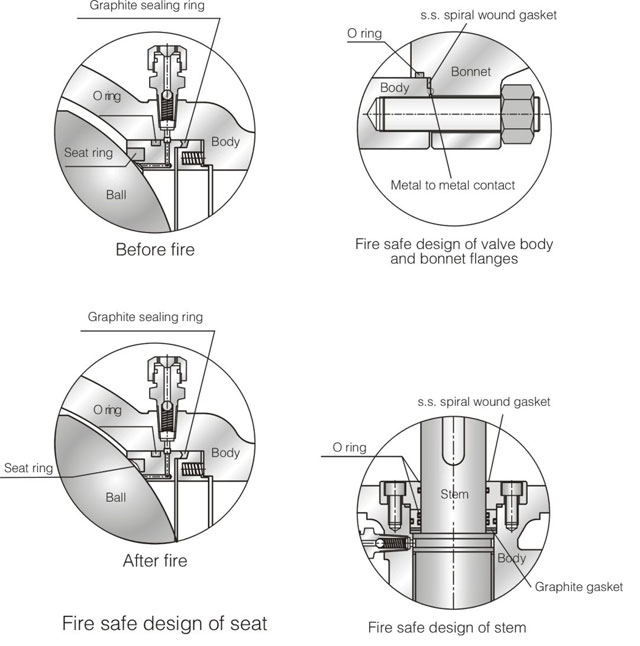

With the valve heated in a fire application, the nonmetal material parts such as seat sealing ring of PTFE,O ring for the stem, and sealing gasket for body and bonnet, might be damaged due to high temperature. CRV's special design of auxiliary metal to metal or the graphite seal is designed for the trunnion ball valve to effectively prevent both internal and external leakage of the valve in case of fire As required by customers, CRV's fire safe design for the trunnion ball valve meets the requirement of API 607, API 6Fa and BS 6755.

Design Feature:
Trunnion Mounted. Side Entry/Top Entry. Independent Ball & Stem
Full Bore/Reduced Bore. Cast 2pcs Bolted Body /Forged 3pcs Bolted or Welded Body
Soft Insert Seat/Metal–to-Metal Seat
Anti-Blowout Stem. Fire Safe Design to API 6FA/607. Anti-static Device
Double Block & Bleed Function. With Vent and Drain Hole
Grease Injection on Stem & Seat . Extended Bonnet or Stem Optional
Specification:
Design: API 6D  API 608  BS5351  ASME B16.34
Size: 2-40.  Pressure Rating: 150Lb-2500Lb
Face to Face: API 6D ,ANSI B16.10
End Connection: RF RTJ/ANSI B16.5&ANSI B16.47,  BW (ANSI B16.25)
Body Material: WCB, A105 CF8, CF8M, CF3, CF3M, F304, F316, F304L F316L LCB LF2  F51.
Ball Coating:  ENP,Tungsten Carbide Coat (TCC), Chrome Carbide Coat (CCC)
Test: API 6D API 598. Marking: MS SP-25
Actuation: Lever, Worm Gear, Electrical, Pheumatic,Hydraulic
Standard Material Specification

Carbon Steel Stainless Steel
WCB LCB CF8 CF8M CF3 CF3M
Body A105 A350 LF2 A182 F304 A182 F316 A182 F304L A182 F316L
Ball A105/ENP/Cr A182 F304 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Stem A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Seat A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Seat Ring PTFE,NYLON PEEK. or HF(Co-CrA)
Gasket PTFE or Flexible Graphite and stainless Steel
O-Ring VITON VITON VITON VITON VITON VITON
Trunnion A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Spring AISI 6160 17-17PH(inconel for NACE)Ni-Cr Alloy
Stem spring 17-7PH(inconel for NACE)Ni-Cr Alloy
Bonnet Bolt A193 B7 A320 L7 A320 B8 A193 B8M
Bonnet Nut A194 2H A194 4 A194 8
Gland A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Stem packing PTFE or Flexible Graphite
Bonnet A216 WCB A105 A352 F6 A350 LF2 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
